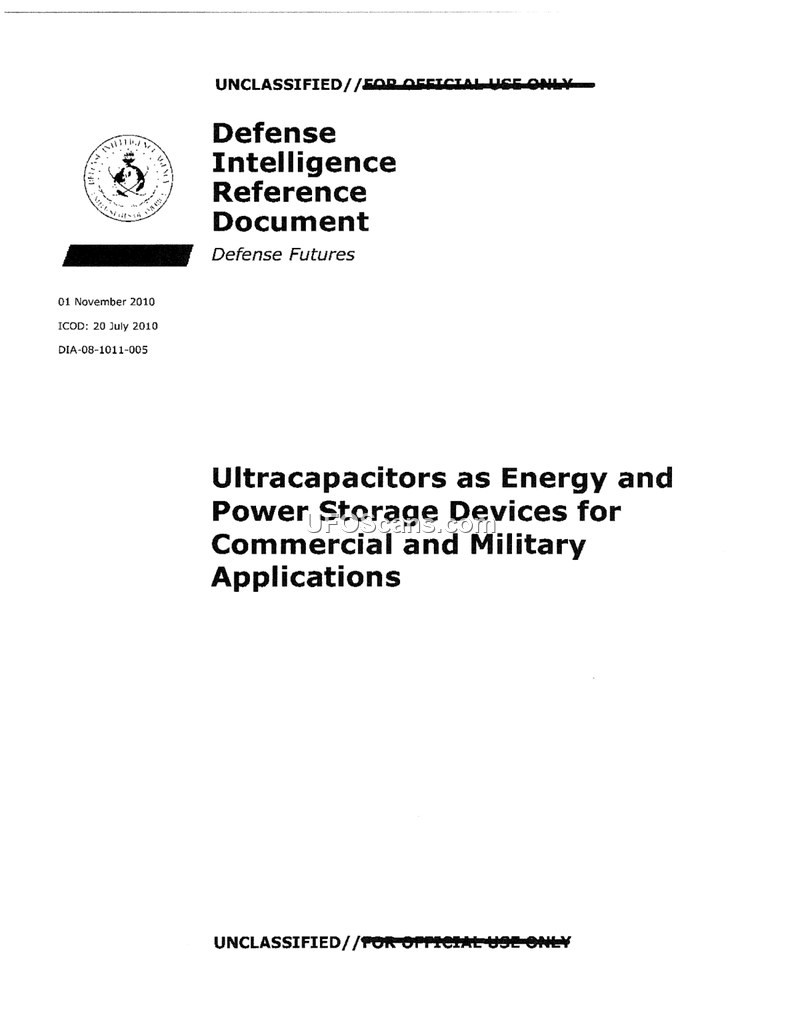

Ultracapacitors as Energy and Power Storage Devices for Commercial and Military Applications

This Defense Intelligence Reference Document, produced by the Defense Intelligence Agency in 2010 under the Advanced Aerospace Weapons System Applications (AAWSA) program, provides a comprehensive overview of ultracapacitor technology. The document details the fundamental principles of ultracapacitors, which store energy in an electrical double layer rather than through chemical reactions, allowing for extremely rapid charge and discharge rates and high cycle life. The report traces the history of the technology from its origins in the late 1800s to the commercialization of the device by the Standard Oil Company of Ohio (SOHIO) in 1966 and subsequent advancements by companies like Matsushita Electric Company. The core of the document examines materials technology, specifically the role of carbon electrodes, electrolytes, and the transition toward asymmetric or pseudocapacitive designs to improve energy density. It highlights recent developments in carbon nanotubes, graphene, and carbide-derived carbons, noting that these materials allow for finer control over pore size and surface area, which are critical for optimizing performance. The document also discusses the application of ultracapacitors in electronics, telecommunications, industrial settings, transportation, and aerospace. It notes that while current ultracapacitors have lower energy density than lithium-ion batteries, their ability to deliver high bursts of power makes them ideal for applications such as regenerative braking, power stabilization, and potential future military uses, including directed-energy weapons. Furthermore, the report explores emerging technologies like Magnetic Capacitors (MCap), which utilize quantum mechanical effects to significantly increase capacitance. The document concludes that continued advancements in materials science and cell design will likely lead to ultracapacitors that approach the energy density of batteries while maintaining their superior power capabilities, making them increasingly vital for future military and commercial energy management systems.
